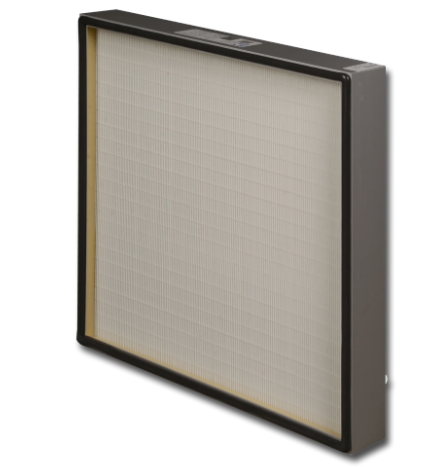

Our HEPA Ceiling Filters with aluminum frames provide high-efficiency filtration for cleanrooms and Laminar Air Flow (LAF) units. The robust aluminum frame ensures a leak-proof seal and long-lasting performance.
Key Features:
High-Efficiency Media: Utilizes high-quality glass fiber media for superior particle removal.
Guaranteed Leak-Free: The aluminum frame and secure sealing ensure a leak-proof design.
Individual Testing: Each filter comes with an individual test certificate (according to EN 1822 – ISO 29463).
Optimized Airflow: Designed for uniform air velocity distribution.
Energy Efficient: Contributes to lower energy consumption.
Versatile Compatibility: Suitable for HEPA boxes and cabinets.

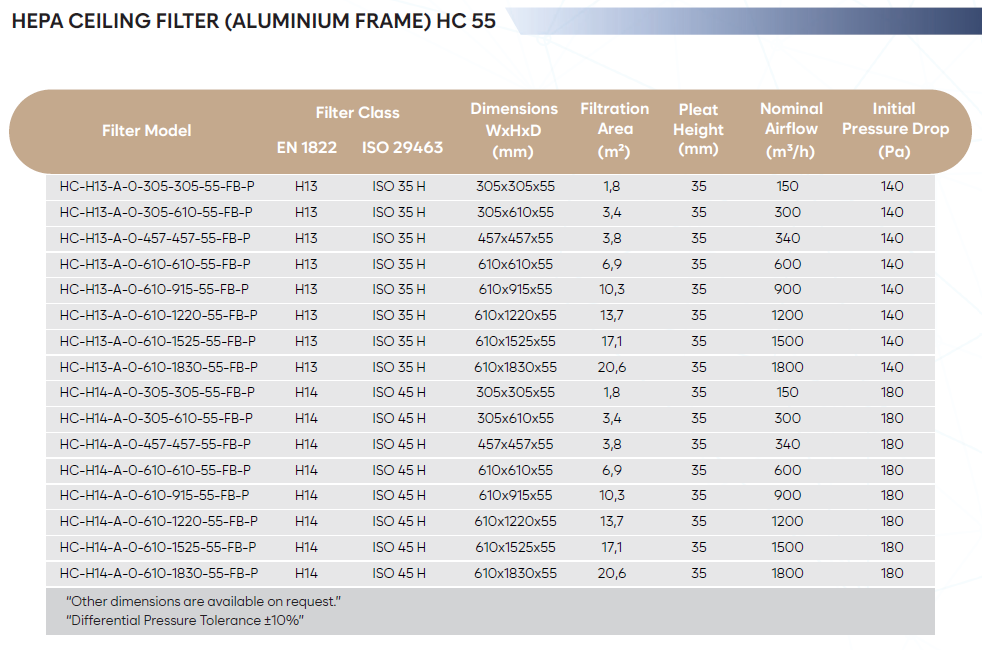

Technical Specifications:
Filter Standard: EN 1822 and ISO 29463
Max. Operating Temperature: 80°C
Filter Class: H13 - H14
Faceguard: Powder-coated aluminum sheet
Media: High-quality glass fiber
Gasket: EPDM flat, EPDM flat continuous, and PU foam
Frame: Anodized extruded aluminum
Sealing Compound: Two-component polyurethane
Rec. Final Pressure Drop: Initial pressure drop x2 (max. 600 Pa)
Separator: Hotmelt

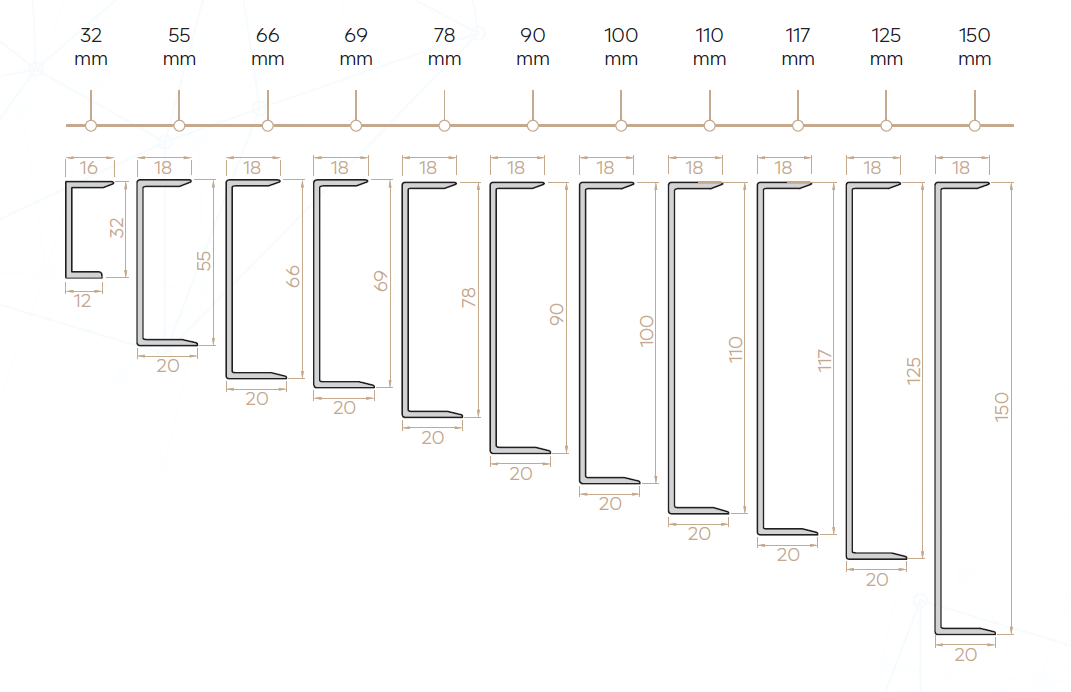

(Include profile drawing here)
Applications:
Cleanrooms
Laminar Air Flow (LAF) Units
Life Sciences
Healthcare
Microelectronics
Food & Beverage
