The TTK 175 S impresses with a variety of detailed solutions that save you time, enhance performance, and secure long-term value retention. Designed with the high-quality German industrial design – protected prototype, this dehumidifier stands out with its efficiency and durability.
Key Features:
High-Quality Hot Gas Automatic Defrost: This ensures efficient dehumidification without any downtime for defrost pauses, providing continuous performance.
Powerful Rotary Compressor: With a 0.88 kW rotation compressor, the TTK 175 S delivers drying capacities of up to 50 liters per day, even at low ambient temperatures.

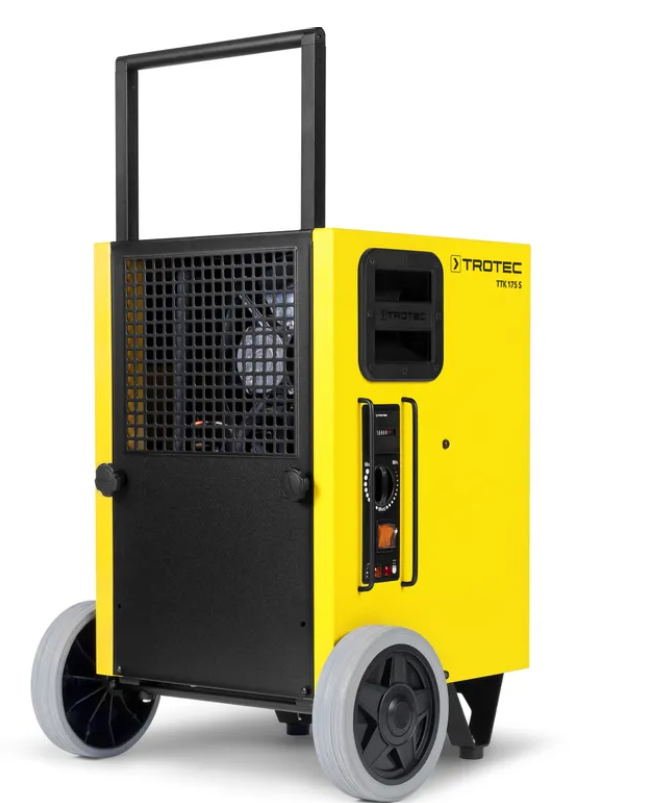

Ergonomic Design: The ergonomic construction with a bar handle and large rubber wheels makes transportation easy, even on construction sites or stairs. The rubber wheels do not leave marks on sensitive flooring.
Environmental Friendly Refrigerant: The TTK 175 S uses propane (R290), an eco-friendly refrigerant with zero ozone depletion potential (ODP = 0) and minimal greenhouse effect (GWP = 3). This helps reduce CO2 emissions and energy consumption.
Compact and Stackable: The design includes two stacking grooves for easy and stable storage, allowing multiple units to be stacked safely.
Integrated Compressor Heat Protection: The compressor is protected with an integrated heat protection system. It ensures long-term performance by automatically shutting off the compressor when the temperature exceeds the critical limit of 35 °C.
Ideal for Rough Environments: All electrical components are protected against dust and moisture, making it perfect for tough conditions such as construction sites.
Practical Features: Includes easy maintenance, optimal handling, and portability. The dehumidifier is also suitable for water damage restoration, with a focus on preserving the appliance's lifespan.
The TTK 175 S is designed for applications that require high humidity control in industrial and commercial environments, offering powerful, energy-efficient, and durable dehumidification.
General Information
Article number: 1.120.000.157
Dehumidification Performance
At 20 °C / 60 % RH [l/24h]: 18
At 30 °C / 80 % RH [l/24h]: 40
Max. [l/24h]: 50
Air Flow Rate
Level Max: 580

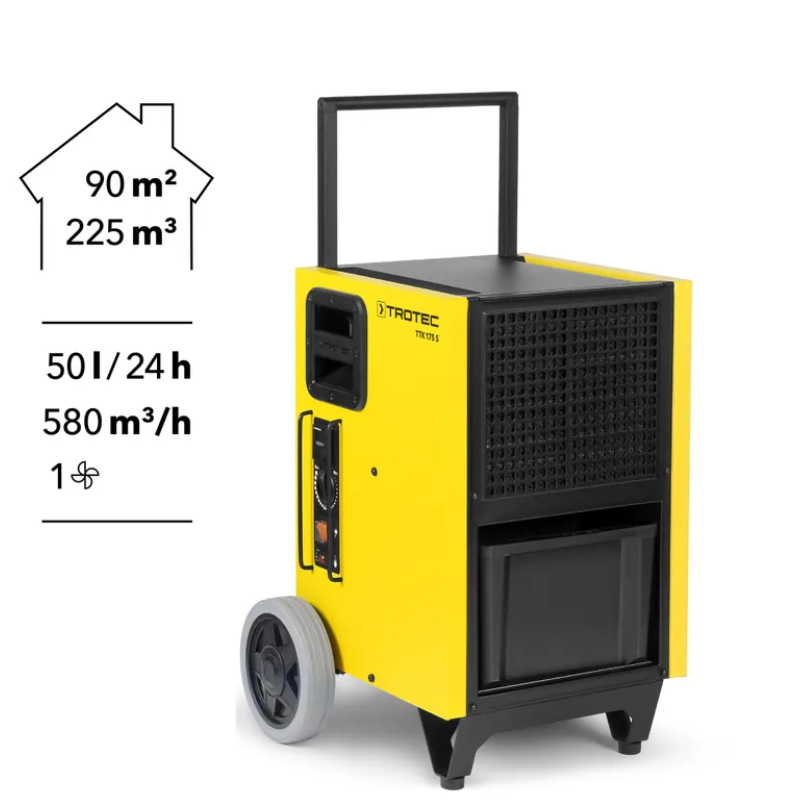

Recommended Room Size (Construction Drying)
m³: 225
m²: 90
Recommended Room Size (Dry Keeping)
m³: 450
m²: 180
Ambient Conditions
Min. Temperature Range [°C]: 5
Max. Temperature Range [°C]: 32
Min. Humidity Range [% RH]: 50
Max. Humidity Range [% RH]: 90
Electrical Values
Mains Connection: 220 - 240 V, 50 Hz
Nominal Current Consumption [A]: 2.8
Power Input [kW]: 0.6
Recommended Fusing [A]: 10
Electric Connection: CEE 7/7
Cable Length [m]: 3
Compressor
Type: Rotary Piston Compressor
Refrigerant: R-410A
Amount of Refrigerant [g]: 150
GWP Factor: 3
CO2 Equivalent: 0.00045 t
Pressure Suction Side [MPa]: 0.6
Pressure Outlet Side [MPa]: 2.1
Max. Permissible Pressure [MPa]: 3
Water Tank
Contents [Litres]: 6
Sound Values
Distance 1 m [dB(A)]: 52
