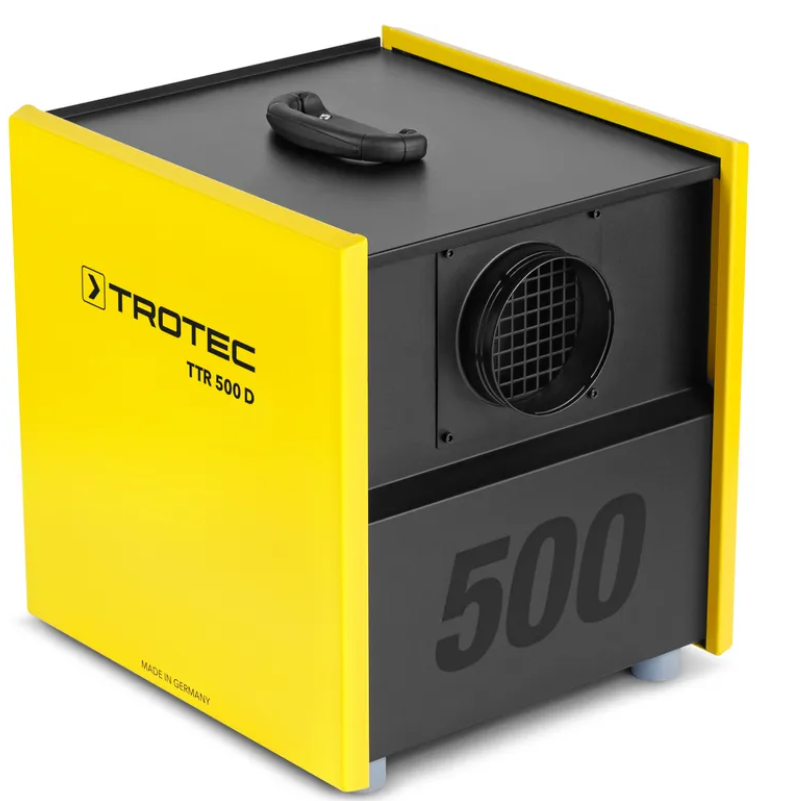

The TTR 500 D impresses not only with its high dehumidification performance even at dew point temperatures far below 0 °C, but also with its maximum flexibility of use due to the TTR Trisorp Dual operating principle of this adsorption dehumidifier.
Key Features:
Two separate air ducts for drying and regeneration air with separate fans for each circuit, enabling pressure-neutral recirculation operation whether the dehumidifier is set up inside or outside the room.
Variable recirculation drying ensures energy-efficient dehumidification with a higher degree of drying.
Achieves dew point temperatures up to 30 °C lower than the feeding regeneration air, resulting in much lower drying conditions and higher energy efficiency.

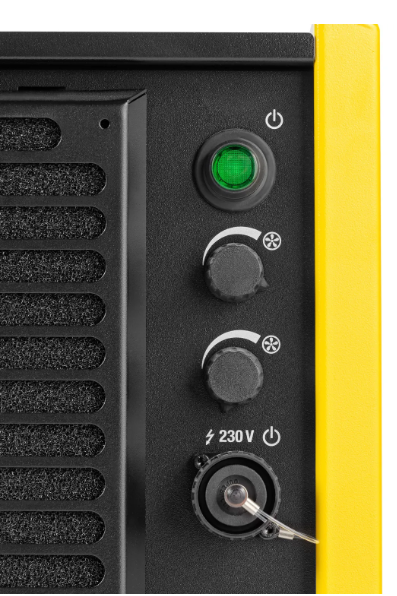

Equipped with Duoventic air volume regulation, allowing independent electronic control of both fans to fine-tune humidity and airflow.
Heat recovery and electrical regeneration air heater made of Thermistor Elements (PTC), which adjusts power consumption based on inlet temperature and regeneration air volume, ensuring safety without requiring thermostats.
Standard DIN socket for external control by hygrostat, timer, or other external switches.
Self-regulating electrical regeneration heater, preventing overheating.
Optional dual meter for operating hours and kilowatt hours.
Ideal for installation in suspended ceilings and can be connected with hoses or pipes for spatially separated air supply.
Compatible with various Z-line filters that can be easily changed without opening the unit.
The TTR 500 D provides maximum flexibility and energy efficiency, making it suitable for a wide range of industrial and construction applications. Developed and manufactured in Germany according to the highest quality standards, this unit delivers reliable performance and versatility.
